Compact Combined Rice Husk Milling Machine
| Model | 6LN-15/8.5SR |
| Rated output | 400–500 kg/h |
| Electric motor power | 18.5 KW |
| Diesel engine power | 30 HP |
| Rice milling rate | >65% |
| Small broken rice rate | <4% |
| Rubber roller dimension | 6 inch |
| Steel roller dimension | φ85 mm |
You can now ask our project managers for technical details
This rice husk milling machine is a comprehensive, integrated system that combines both hulling and milling functions, specifically designed to process paddy rice in a single pass. The unit incorporates a cleaning sieve, a gravity destoner, a rubber-roller husker, and a steel-roller rice mill, capable of processing 400 to 500 kilograms of rice per hour.
To facilitate use in regions with limited or unreliable power supplies, the machine is designed to operate on diesel power. Its compact footprint allows for milling operations within confined spaces, making it the premier choice for small rural communities and independent operators.
What is a Combined Rice Milling Machine?
A combined rice husk milling machine is an integrated rice processing system that consolidates multiple stages of the rice production process into a single, highly efficient unit. Unlike basic rice milling machines, this equipment is capable of performing the following operations:
- Paddy cleaning
- Impurity removal
- Stone separation
- Husking (removal of rice hulls)
- Brown rice separation
- Whitening/Polishing
- Bran separation
Specifically designed for paddy processing, it transforms unprocessed paddy directly into high-quality polished white rice through a single, seamless operational workflow.
This equipment is particularly valuable in the following settings:
- Rural agricultural communities
- Regions with limited power supply
- Mobile rice milling services
- Small to medium-sized rice processing plants
- Agricultural cooperatives
Key Advantages of This Rice Huller and Milling Machine
- Highly integrated: A single unit is capable of completing the entire rice processing workflow.
- Versatile power options: Offering a dual-choice power system, supporting both diesel and electricity.
- Ideal for off-grid agriculture: It is perfectly suited for use in remote regions and an excellent choice for startups.
- High commercial returns: The equipment has a broken rice rate of less than 4%, thereby maximising the commercial value of the rice crop.
- Compact design: Not only saves space and facilitate easy transport, but it also ensures simple installation and effortless maintenance.
Technical Parameters of 6LN-15/8.5SR Rice Husk Milling Machine
| Parameter | Specification |
|---|---|
| Model | 6LN-15/8.5SR |
| Rated output | 400–500 kg/h |
| Electric motor power | YE2-180M-4 / 18.5 KW |
| Diesel engine power | ZS1130 / 30 HP |
| Rice milling rate | >65% |
| Small broken rice rate | <4% |
| Rubber roller dimension | 6 inch |
| Steel roller dimension | φ85 mm |
| Overall weight | 730 kg |
| Machine dimensions | 2650×1250×2350 mm |
| Rice mill packing dimensions | 1850×1080×2440 mm |
| Diesel engine packing dimensions | 910×440×760 mm |

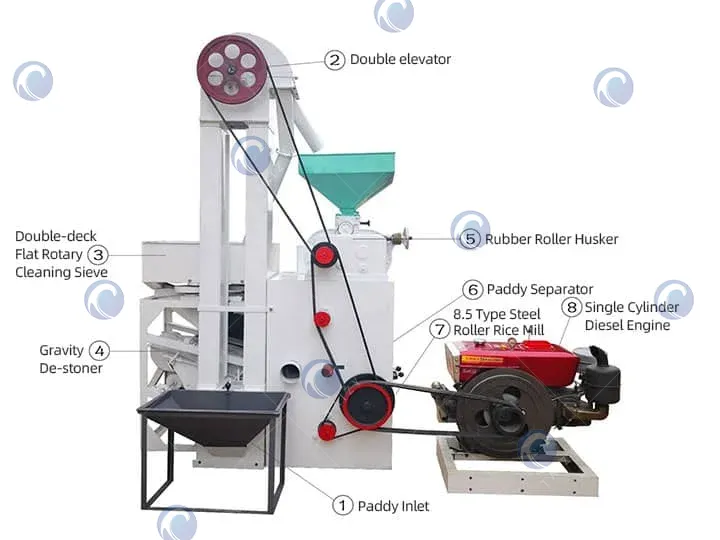

Structure and Component Functions of the Integrated Rice Hulling and Processing Machine
The complete equipment primarily consists of the paddy inlet, dual elevators, horizontal cleaning sieve, gravity destoner, rubber-roller husker, paddy-brown rice separator, and steel-roller rice whitener. Their respective functions are as follows:
- Paddy inlet: Equipped with a sturdy steel frame, it supports bag-fed operations, ensuring a convenient and smooth flow of paddy into the system.

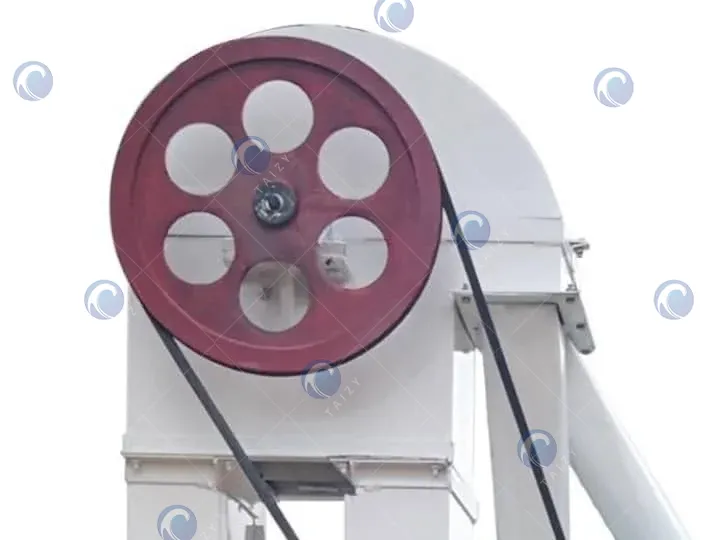

- Dual elevators: Responsible for conveying paddy between the cleaning and hulling stages. a single power system drives both conveying channels, ensuring that the operation of each channel remains independent and free from mutual interference.

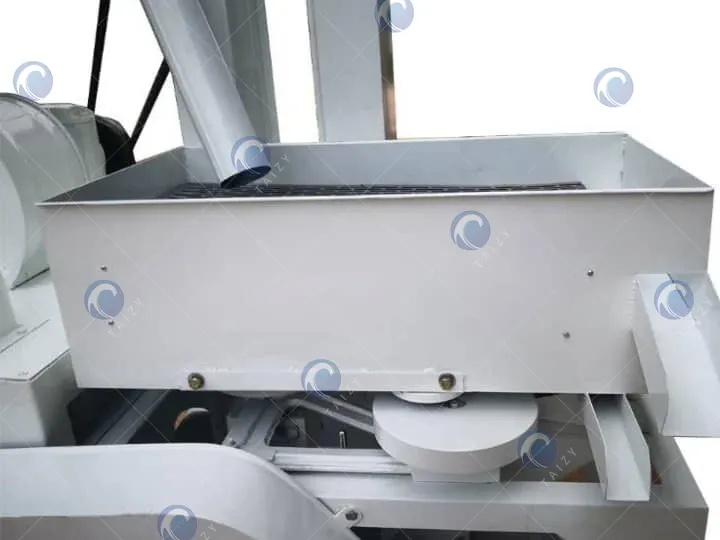

- Horizontal cleaning sieve: Removing large particles and fine impurities from the paddy.

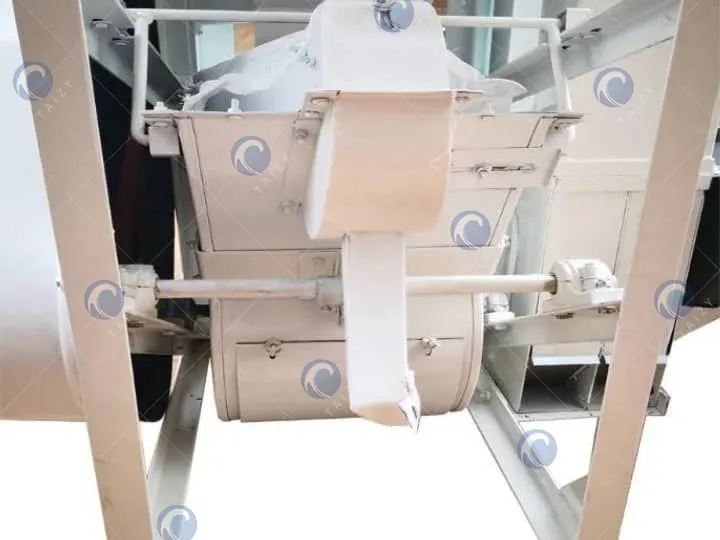

- Gravity destoner: Utilising air-flow separation principles to remove stones and heavy foreign objects.

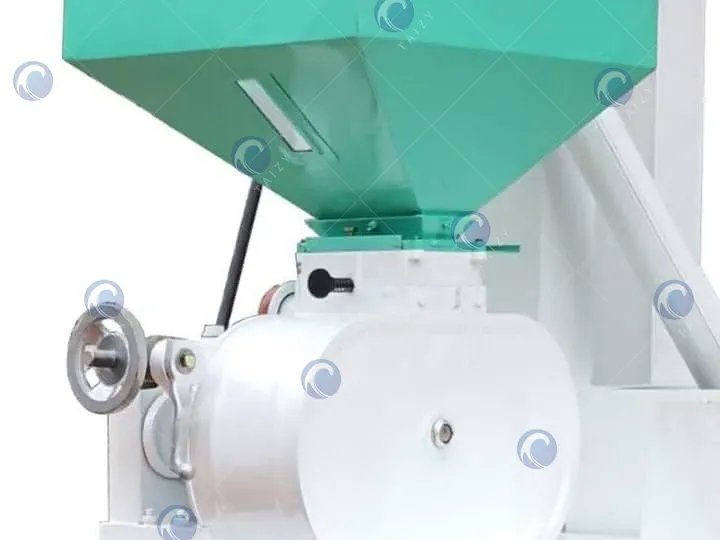

- Rubber-roller husker: Facilitating the removal of the outer husk from the paddy to produce brown rice.
- Paddy-brown rice separator: Removing husks (bran) to enhance the quality and efficiency of the hulling process.

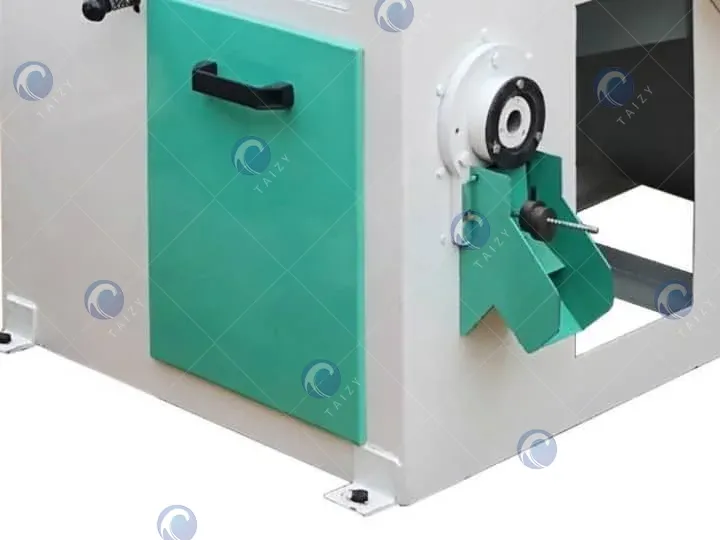

- Steel-roller rice whitener: Processing the brown rice to remove the bran layer, thereby improving the visual appearance and quality of the rice grains.
Combined Rice Husk Milling Machine vs Ordinary Rice Mill
| Feature | Rice Husk Milling Machine | Ordinary Rice Mill |
|---|---|---|
| Paddy Cleaning | Integrated cleaning sieve | Often separate or unavailable |
| De-Stoning | Built-in gravity de-stoner | Usually not included |
| Husking Efficiency | >85% rubber roller husker | Lower or less efficient |
| Rice Whitening | Steel roller whitening | Basic milling only |
| Power Options | Diesel + Electric | Mostly electric only |
| Mobility | High | Low |
| Broken Rice Rate | <4% | Higher |
| Productivity | 400–500 kg/h | Lower |
| Installation | Compact and easy | Larger footprint |
| Suitable Areas | Rural, mobile, power shortage regions | Stable power supply only |
| Investment Return | High | Moderate |
| Rice Quality | High gloss, cleaner rice | Standard quality |
If you require higher output or a more comprehensive rice processing workflow, a rice milling unit may be able to meet your needs!
Contact Us for Your Rice Processing Solutions!
This rice husk milling machine is an advanced, all-in-one rice processing solution designed specifically to meet the demands of modern agriculture. By integrating cleaning, destoning, hulling, and whitening processes into a single unit, it significantly enhances rice quality, operational efficiency, and profitability.
Whether you are a farmer, a rural entrepreneur, or a commercial rice processor—and particularly for those in regions with limited power supply or growing rice production requirements—this machine represents an ideal choice that is both practical and holds immense potential for profitability.
Contact us to receive the latest pricing and information.
