TDTG Middle Speed & TDTGW Low Speed Bucket Elevator
| Model | TDTG & TDTGW |
| Capacity (t/h) | 1-50t/h |
| Height (m) | 3-6.5m |
Anda sekarang dapat meminta manajer proyek kami untuk detail teknis
The bucket elevator is designed for efficient vertical conveying of grains and other bulk materials. It is widely used in feed mills, rice milling plants, flour processing lines, grain storage facilities, and seed processing factories.
The series includes the TDTG middle speed grain bucket elevator and TDTGW low speed conveyor feeder, providing reliable, continuous, and low-maintenance conveying solutions for different production needs.
Wide range of applications
Both the TDTG middle speed bucket elevator and TDTGW low speed vertical feeder conveyor are suitable for conveying a wide variety of dry granular and powder materials.
Applicable materials include:
- Corn
- Wheat
- Paddy rice
- Soybeans
- Feed pellets
- Seeds
- Beans
- Flour
- Bran
- Fertilizer granules
- Other free-flowing bulk materials
These feed bucket elevators are widely used in:

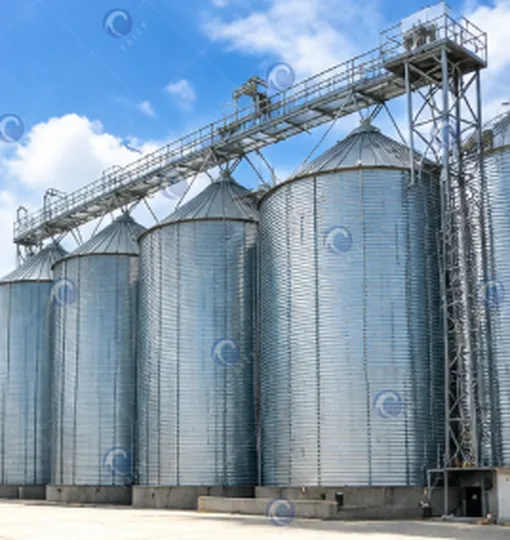

- Grain storage facilities

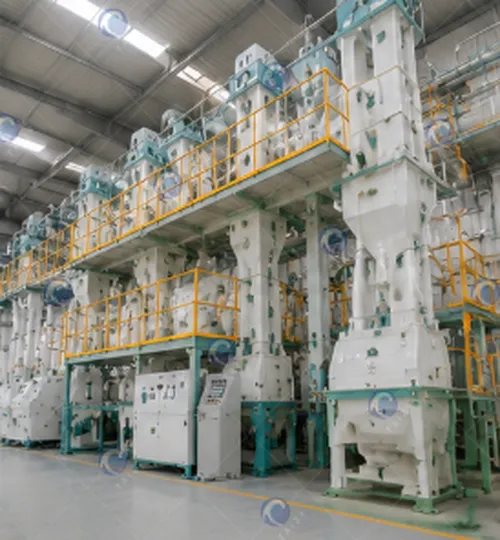

- Feed pellet production lines
- Rice milling plants
- Flour mills
- Seed processing plants
- Grain drying systems
- Agricultural processing factories
- Bulk material conveying systems
With their compact vertical structure, they can easily be integrated into both new and existing production lines.
Features of our bucket elevator
Our industrial grain conveyor series is designed to provide stable, efficient, and continuous material conveying for industrial applications.
- High conveying efficiency： The optimized bucket arrangement enables continuous vertical transportation while ensuring smooth material discharge and stable operation.
- Gentle material handling： The conveying system minimizes impact during loading and unloading, helping reduce grain breakage and preserve the quality of agricultural products.
- Durable and reliable structure： Manufactured from high-quality steel with wear-resistant components, the machine provides excellent durability and reliable long-term performance.
- Space-saving design： The vertical conveying structure occupies very little floor space, making it ideal for factories with limited installation areas.
- Low energy consumption： An efficient drive system reduces power consumption while maintaining stable conveying performance and lowering operating costs.
- Easy installation and maintenance： The modular design simplifies installation, inspection, and routine maintenance, helping minimize downtime.
- Flexible customization： Different lifting heights, conveying capacities, bucket sizes, and motor configurations can be customized according to customer requirements.
Middle speed & low speed bucket elevator
Our rice lifting conveyor series includes two models designed for different conveying needs.
TDTG series middle speed rice conveyor
The middle speed bucket elevator machine is the latest vertical lifting elevator. It’s suitable for vertical lifting of grain, feed, and chemical industries.
This elevator uses a backup bucket on an annular running belt to dig materials from the bottom, lift them to the top, and unload the materials by gravity, completing the vertical conveying function.
| Model | Capacity (t/h) | Power (kw) | Bucket Model | Height (m) |
| TDTG18/07 | 1 | 0.75 | 0705 | 3 |
| TDTG20/11 | 3 | 0.75 | 1109 | 5 |
| TDTG20/13 | 5 | 1.1 | 1311 | 5 |
| TDTG20/16 | 8 | 1.5 | 1612 | 5 |
| TDTG20/18 | 10 | 1.5 | 1812 | 5 |
| TDTG26/23 | 15 | 2.2 | 2314 | 5.5 |
| TDTG30/23 | 20 | 2.2 | 2316 | 5.5 |
| TDTG36/28 | 25 | 3 | 2816 | 6 |
| TDTG50/33 | 50 | 5.5 | 3321 | 6.5 |

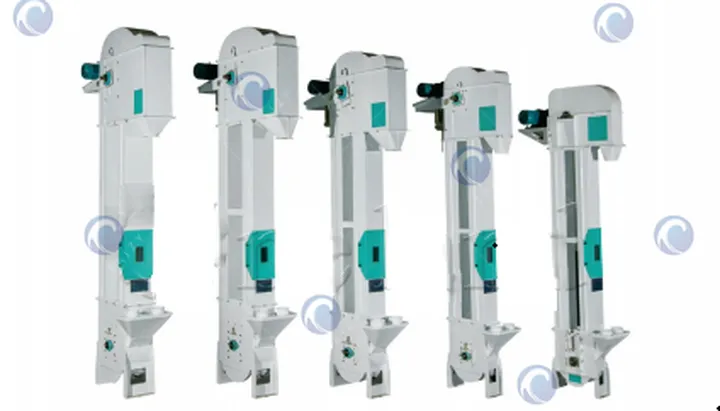

TDTGW series low speed conveyor feeder
Compared with the middle speed feeder elevator, low speed bucket elevator has the same function, but it has some advantages.
- Compact structure, motor with reducer, chain transmission.
- low speed and energy consumption, decreasing breakage rate, and noise.
- The belt has good strength, automatic tightening, running very stably.
- Special feeding channel also can reduce breakage
| Model | Capacity (t/h) | Power (kw) | Bucket Model | Height (m) |
| TDTGW4 | 4 | 1.1 | 1010 | 5.3 |
| TDTGW6 | 5-6 | 1.1 | 1413 | 5.5 |
| TDTGW10 | 8-10 | 1.5 | 1715 | 6 |
| TDTGW15 | 12-15 | 2.2 | 2017 | 6 |
| TDTGW20 | 18-23 | 3 | 2517 | 6 |
| TDTGW30 | 25-30 | 4 | 2921 | 6.3 |
Why choose our bucket elevator?
As a professional manufacturer of grain processing equipment, we provide reliable vertical feeder elevating solutions for customers worldwide.
Our advantages include:
- High conveying efficiency
- Stable and continuous operation
- Low maintenance requirements
- Long service life
- Low operating costs
- Reliable performance
- Professional technical support
- Customized design according to your production line
Whether you need a vertical feeder for a feed mill or a vertical feeder conveyor for grain storage, our engineering team can recommend the most suitable model based on your materials, capacity, and factory layout.
Customized bucket elevator solutions
Every production line has different conveying requirements. We offer customized solutions based on:
- Conveying capacity
- Lifting height
- Bucket type
- Belt material
- Motor configuration
- Installation environment
- Factory layout
- Material characteristics
Our engineers can also provide complete material conveying solutions for feed production lines, rice milling plants, flour processing systems, and grain storage projects.
Contact us
Looking for a reliable bucket elevator for your grain processing or feed production project?
Whether you choose the TDTG middle speed vertical lift conveyor for high conveying efficiency or the TDTGW low speed rice nut conveyor for gentle grain handling, we can provide professional equipment, customized solutions, and comprehensive technical support.
Contact us today to receive detailed specifications, competitive pricing, and expert recommendations for the ideal grain conveyor solution for your business.
